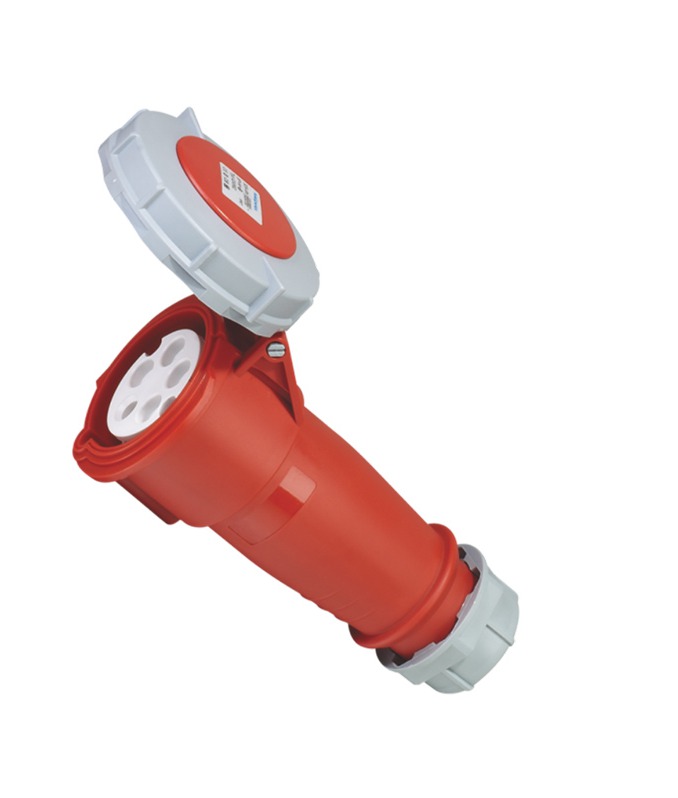

SERİ NO : ST38050016SP - ST38050032SP - ST38050063SP - ST38050125SP - ST38050160SP
TEKNİK ÖZELLİK
UYGULAMA ALANLARI
|
AMPER |
16A |
32A |
63A |
125A-160A |
|||||||||||
|

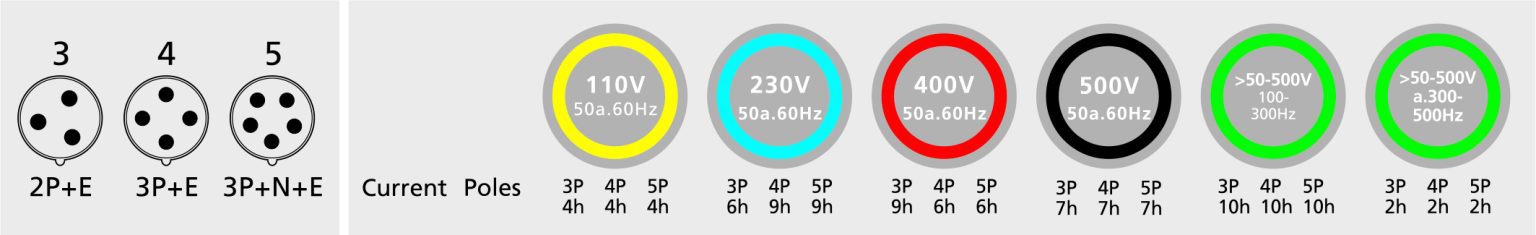

STANDART |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
|||
|

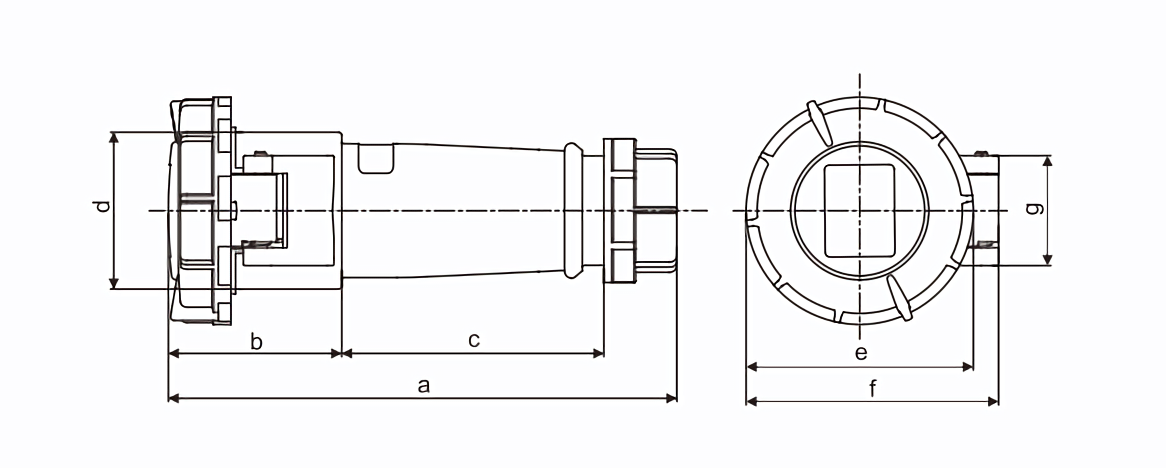

a |
160 |
160 |
167 |
203 |
203 |
205.5 |
260 |
260 |
260 |
315 |
315 |
315 |
|||
|
b |
54.7 |
55.5 |
56.3 |
67.5 |
67.5 |
68 |
104 |
104 |
104 |
116 |
116 |
116 |
|||
|
c |
90 |
101 |
103 |
100 |
100 |
137.7 |
95 |
95 |
95 |
130 |
130 |
130 |
|||
|
d |
49.5 |
55.7 |
63 |
64.2 |
64.2 |
70.8 |
77.4 |
77.4 |
77.4 |
89.5 |
89.5 |
89.5 |
|||
|
e |
71.7 |
80.6 |
89 |
95.5 |
95.5 |
101.9 |
109 |
109 |
109 |
121 |
121 |
121 |
|||
|
f |
79.7 |
85.6 |
93 |
98.3 |
98.3 |
104.9 |
112.5 |
112.5 |
112.5 |
125 |
125 |
125 |
|||
|
g |
34.7 |
37 |
37 |
37 |
37 |
37 |
34 |
34 |
34 |
34.5 |
34.5 |
34.5 |
|||
|
İletken kesit alanı (mm²)Min.To Max |
|||||||||||||||
|
|
1.5-2.5 |
4-6 |
10-16 |
25-35 / 50 |
|||||||||||
