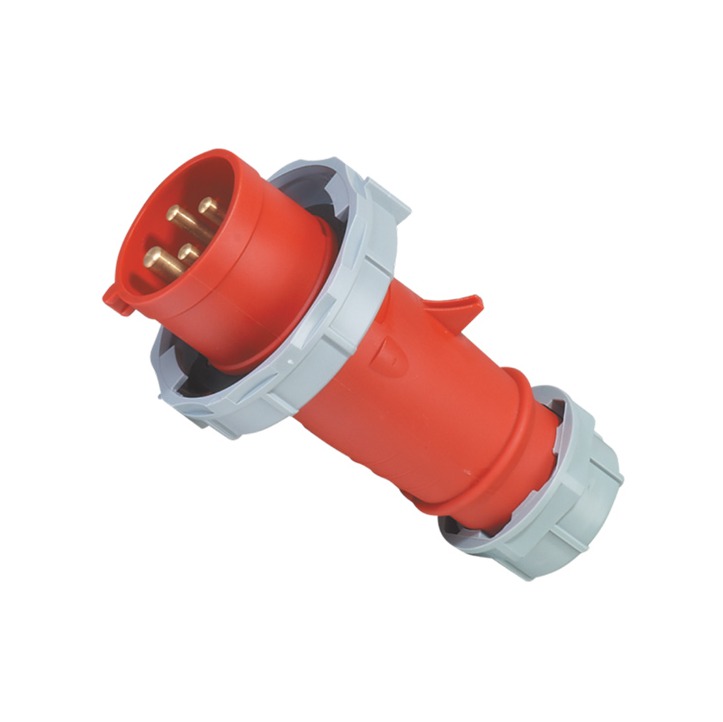

SERİ NO : ST38050016SF - ST38050032SF - ST38050063SF - ST38050125SF - ST38050160SF
TEKNİK ÖZELLİK
UYGULAMA ALANLARI
|
AMPERS |
16A |
32A |
63A |
125A-160A |
||||||||
|
STANDART |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
3 |
4 |
5 |
|

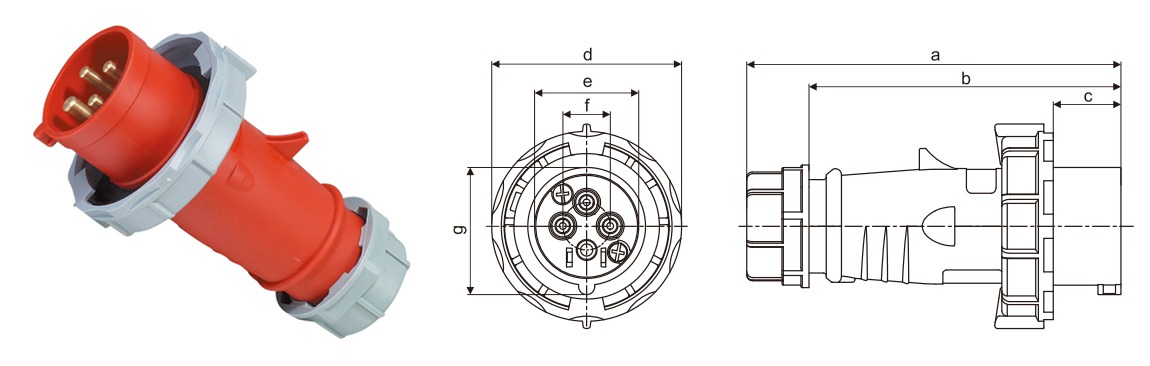

a |
140 |
142 |
144 |
173 |
173 |
177 |
238.9 |
238.9 |
238.9 |
286 |
286 |
286 |
|
b |
116 |
119 |
121 |
144 |
144 |
148 |
179.5 |
179.5 |
179.5 |
219 |
219 |
219 |
|
c |
24.7 |
26 |
27 |
32.5 |
32.5 |
32.5 |
51.1 |
51.1 |
51.1 |
57 |
57 |
57 |
|
d |
70.2 |
78 |
87 |
93.3 |
93.3 |
101 |
112.9 |
112.9 |
112.9 |
131 |
131 |
131 |
|
e |
38.5 |
43.8 |
50 |
51 |
51 |
56.5 |
63 |
63 |
63 |
75.1 |
75.1 |
75.1 |
|
f |
17.5 |
21.5 |
26.5 |
25 |
25 |
30.3 |
36.5 |
36.5 |
36.5 |
42.5 |
42.5 |
42.5 |
|
g |
47 |
52 |
60 |
62 |
62 |
68.7 |
75.3 |
75.3 |
75.3 |
87.2 |
87.2 |
87.2 |
|
İletken kesit alanı (mm²)Min.To Max |
||||||||||||
|
|
1.5-2.5 |
4-6 |
10-16 |
25-35 / 50 |
||||||||
